Plate-type magnetic separator

What is a separator suitable for?

- Effectively picks up fine metal contaminants from loose and abrasive materials.
- Suitable for chutes and piping systems
- Protects machinery and enhances product quality
- Magnetic plate with high induction up to 12,000 G

More about the separator

Design and cleaning principle of the separator

Important parts of the separator

Magnetic plate with protective poles and inlays

The magnetic plate is equipped with protective poles against abrasion and lined with abrasion-resistant polyurethane, which is suitable for food applications.

Cleaning automation

A fully automated cleaning process increases productivity, eliminates the need for manual operators and prevents human neglect of cleaning intervals.

Safety and efficiency

The design ensures high work safety and reliable operation, ideal for handling poorly friable and abrasive materials.

Do you have any questions?

Do you have a question or are you interested in a non-binding offer?

Model series

Single-sided magnetic separator MSV PO J

Differences from standard:

More information

Why Magsy

Own production hall

23 years on the market

Leading separator manufacturer in Europe

Our service team operates non-stop – 24 hours a day

Over 50 000 + separators produced

ISO 9001 certificates

How do we pack and ship magnetic separators?

How does the cooperation work?

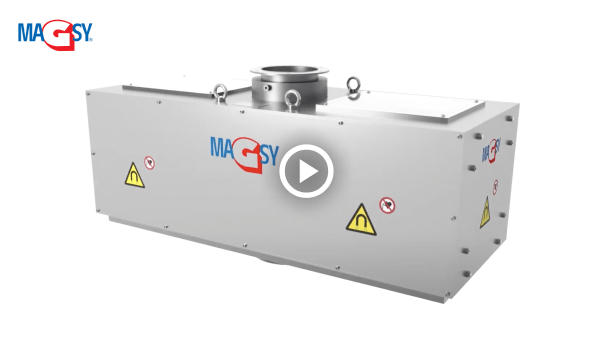

Product description

MSP FAC serves both for a protection of technological devices (the variant with a ferrite core), and for the inspection and securing of the final product (the variant with a neodymium core).

The high magnetic output, together with a perfect workmanship and cleaning system, meet the needs of the most demanding customers belonging to various industrial areas where a big attention is paid to the protection of technological devices and final product cleanliness.

...

MSP FAC serves both for a protection of technological devices (the variant with a ferrite core), and for the inspection and securing of the final product (the variant with a neodymium core).

Magnetic separator is controlled using FESTO pneumatic elements. SIEMENS controlling system that is a part of the delivery, is useful in most of the industrial areas. Separated material is poured through the central part where the adjustable drawing-apart roof directs the material flow equally onto the magnetic plates. During the automatic cleaning process, the plates move to the separator sides where they become demagnetized, and the impurities caught fall off automatically to the side positions. Due to the unique magnetic core design, the MSP line achieves perfect magnetic parameters within the entire material flow cross-section.

Benefits of the magnetic separator MSP FAC with an automatic cleaning system

Cleaning process automation enhances the working productivity, it does not require operators, contributing thus to an elimination of potential cleaning interval neglecting, if given by the human factor. Last but not least, very good working safety should be noted.
Using in operations characterized by a high frequency of ferromagnetic impurity occurrence.
Adjustable cleaning interval, based on the quantity of impurities caught.
Possibility of connecting onto the central controlling system (potential-less contacts as a standard, PROFINET or PROFIBUS as an option).
Deep magnetic field, high tear-off force and magnetic induction.
Using also in materials with poor bulk parameters, and in abrasive loose materials – insertion using abrasive-resistant polyurethane – quite comfortable in the food industry.
In positions where the highest separation quality is required, or in situations where an elevated occurrence of very small ferromagnetic impurities is observed, a plate-type separator including 7 magnetic circuits was developed.
It meets requirements of the norms for using in the food industry, e.g. EN 1935/2004.
It is made of the stainless steel 1.4301, controlling elements have been produced by the renowned manufacturers FESTO, Siemens and Rittal.
The device is ready for the pipeline systems DN 150/200/250/300. Using transitional elements, the connections may be adapted..
Resistance, durability, assembling readiness. Putting into operation and personal training is a part of the supply, as an option.
Service support directly on a place or, possibly, using a remote administration through a GSM module.
Certificate of the magnetic parameters – as measured by calibrated devices and trained personnel. Regular yearly inspection and inspection measurements carried out by the MAGSY service department, directly in your company.

Industrial utilization area

Separation aimed at protection of manufacturing technologies

In case of applications serving to a protection of manufacturing devices, MSP FAC separator is equipped with a ferrite magnetic core characterized by a deep and efficient magnetic field capable of catching even coarser magnetic impurities, protecting thus subsequent production devices. This way, the device contributes significantly to saving of the costs related to the maintenance and servicing activities.
Separation aimed at a product cleanliness

In case the device is utilized in positions where the final product quality and safety must be secured, then the fully automated MSP FAC separator is equipped with a neodymium magnetic core achieving top-quality levels of the magnetic induction and tear-off force parameters. For positions where the highest separation quality is required, or where more frequent occurrence of very small ferromagnetic particles is expected, a plate-type separator including seven magnetic circuits was developed.

Size models

As a standard, MSP FAC product line is offered in the dimensions corresponding to the pipeline systems with the diameters of 150/200/250/300. For other dimensions or smaller diameters, installation using transitional elements is possible.

Connecting requirements

Power supply – 230/16 A
Pneumatics – pressurized air – 6 bar permanently

Separator safety and quality information

We care about the high quality of our magnetic separators

General technical specification

Magnetic equipment

Ferrite magnets with a deep magnetic field design, or very strong NdFeB magnets protected by a plate made of the stainless steel 1.4301/1.4404

Temperature resistance of the magnetic material

Anisotropic ferrite 200 °C/NdFeB, up to 80 °C as a standard – 120 °C, 150 °C as options

Magnetic output

ferrite ca 2.100 G / 25 N on the core /// 1.800 G / 20 N on the contacting surface
NdFeB ca 6.000 G / 80 N on the core /// 4.500 G / 60 N on the contacting surface

Separator material

As a standard: stainless steel 1.4301 / AISI 304
As an option: stainless steel 1.4404 / AISI 316 L (for acidic pH environments)

Pressure resistance

Not designed for pressure pipelines

PLC – controlling

Siemens

Pneumatic control elements

FESTO

Distribution boards – pneumatic and electrical

Rittal

Surface treatment

Outer surfaces and the separator body: machine-blasted using a ceramics compound

Connecting elements

As a standard: 150×150/200×200/250×250/300×300
Based on your requirements, the connections may be carried out according to a specific position, using transitional elements
For very dusty products it is recommended to make a connection the a de-dusting system – installation holes are prepared on the separator – DN 50 – smooth pipe

Sealing material

As a standard: sealing meeting food industry requirements
As an option: based on requirements

Optional functional accessories

Insertion using an abrasive-resistant polyurethane
Electrical and pneumatic controlling elements corresponding to ATEX 22 environment
Intermediate pieces for an installation into another pipeline diameter
Putting into operation and personnel training

Engineering workmanship

All engineering workmanship operations are performed using own production equipment and own MAGSY CZ engineering technology.

Component welds

They are performed according to requirements of technological standards valid for stainless material welding. Demanding outgoing weld inspection guaranties the high final product quality.
