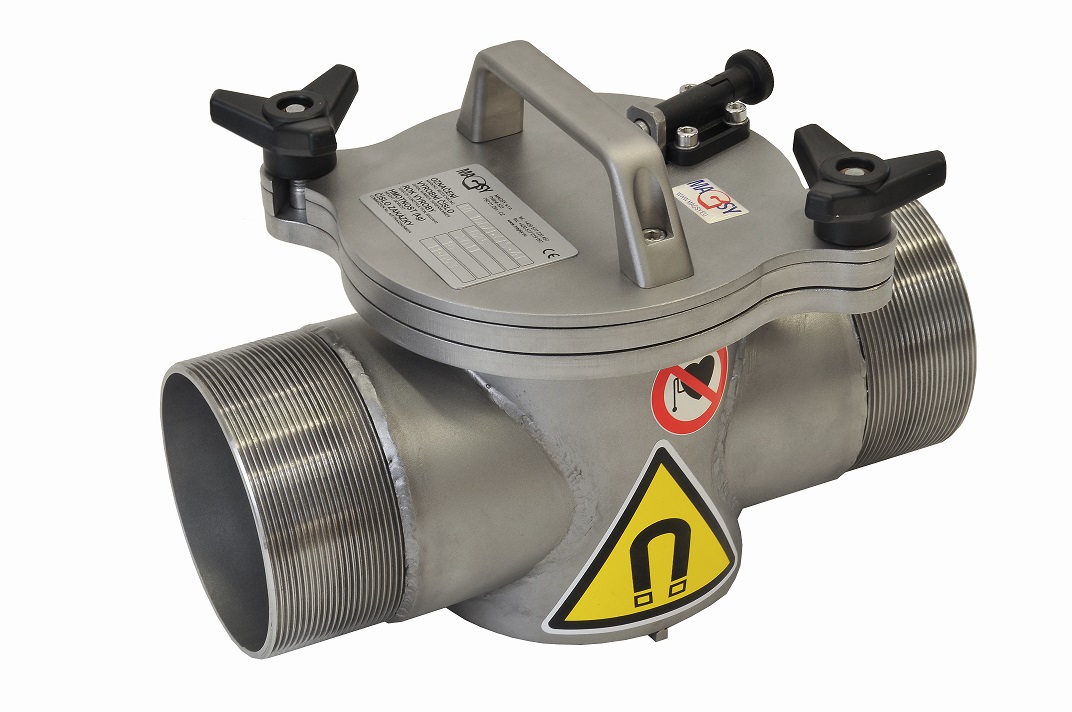

Cistern-type magnetic separator MF CIS Special

MF 100/1-CIS-4P-N-5-120-S-P-MODEL 1 – 51943
This cistern-type and flow-type magnetic separator serves to a separation of metal impurities from dry, powder-like, loose and well permeable materials being used in the food, chemical and/or raw material industries. During discharge, these materials are transported from a cistern truck using pressurized air, or by free pouring. Safety insuring of the magnetic component in the separator body is provided using safety nuts. The separator is also suitable for pressure pipelines with the maximum pressure of 2 bar. Flow labyrinth consists of 7 magnetic pipes.

News in comparison with the standard version

  • On two positions, the magnetic separator includes a silicone sealing. The first position is between the body and the pipes whereas the second one is between the pipes and the magnets.
  • The magnet are permanently covered with the stainless-steel pipes. A great benefit of this design consists in the fact that the magnets are protected safely against humidity. And also, in case of a careless cleaning, there is not a risk that any metal impurities occur on the magnets.
  • The magnetic component is attached to the separator body using for safety points.
  • Entire separator is sanded completely. As the only polished parts, covering pipes are considered, in order to enable better cleaning – i.e. wiping metal impurities caught off.

Separator technical parameters

  • 100 – entrance and exit inner diameter is 100 mm
  • 1 – single-coated, no separator body cooling / heating option included
  • 4P – four-inch, screw-type outer threading on both the entrance and exit
  • N – entire separator is made out of the 1.4301 stainless steel
  • Coat magnetic induction is 12,343 G
  • Coat tear-off force is 97 N
  • 120 – temperature resistance is up to 120 °C

Basic technical specification

Magnetic equipment

  • very strong NdFeB magnets in cover polished stainless steel tubes

Thermal resistance of magnetic material

  • up to 80 °C as standard

Magnetic power

  • standard grade IV - high breakaway force and induction

Separator material

  • standard: stainless steel 1.4301 / AISI 304
  • Optionally: stainless steel 1.4404 / AISI 316 L (for acidic pH)

Pressure resistance

  • standard: 2 bar
  • higher pressure versions can be prepared according to requirements

Surface finishes

  • outer surfaces and separator body: machine blasted with ceramic mixture
  • outer surface of cover tubes: polishing

Connection elements

  • standard threaded pipe 80 or 100 mm
  • can be retrofitted with quick-release fire-fighting couplings according to requirements

Seal material

  • standard: seals meeting the requirements for the food industry
